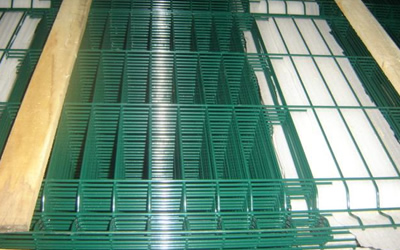

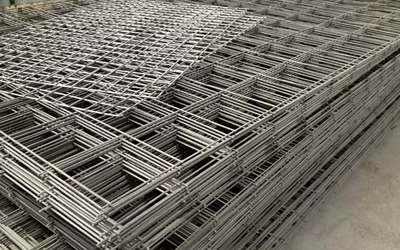

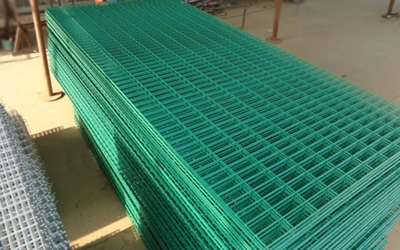

Roofing Nails Common Nails Concrete Nail Wall SpikeWelded Mesh Panels
Welded Panels are made of superior quality welded mesh, with flat surface, firm structure, be used extensively in building, agriculture and reinforced lining material in construction, such as road and bridge construction, concrete cast.
Material: low carbon iron wire, rib wire, deformed bar, stainless steel wire, etc.
The biggest deformed bar we can deal with is 12mm.
Features and advantages: To be done Mesh Panel. The minimum aperture is 25mm.
Special specifications can be made as customers’ requirements.
Stainless steel welded panels, Galvanized welded panels, Hot-dipped galvanized welded panels.
| Galvanized Fencing Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
| 3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
| Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||
| PVC Coated Welded Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
