Roofing Nails Common Nails Concrete Nail Wall SpikeBlack Wire Cloth

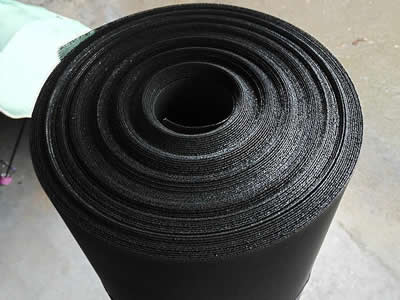

Black Wire Cloth Material: Super quality low carbon steel wire.

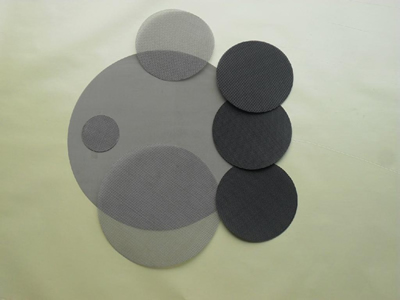

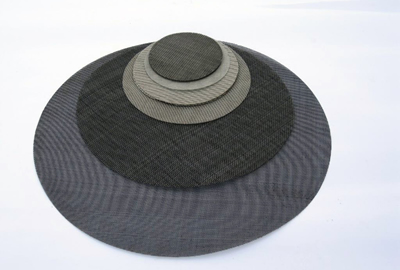

Black Wire Cloth Weaving: Plain or twill woven wire cloth. Can be processed into filter discs of various sizes. Cut to size panels in all shapes including, squares, rectangles and circles in all materials and mesh sizes.
Black Wire Cloth Use: Black Wire Cloth is mainly used in filtration of rubber, plastic, petroleum and grains industry.
| Mesh/Inch | Opening (mm) | Wire Diameter( mm) | Reference weight(kg/sq.meter) |
| 10mesh x 10mesh | 1.94 | 0.6 | 1.8 |
| 10mesh x 10mesh | 1.98 | 0.56 | 1.56 |
| 12mesh x 12mesh | 1.52 | 0.6 | 2.16 |
| 12mesh x 12mesh | 1.56 | 0.56 | 1.88 |
| 18mesh x 18mesh | 0.96 | 0.45 | 1.82 |
| 18mesh x 18mesh | 1.0 | 0.41 | 1.52 |
| 18mesh x 18mesh | 1.04 | 0.37 | 1.23 |
| 18mesh x 18mesh | 1.06 | 0.35 | 1.1 |
| 20mesh x 20mesh | 0.86 | 0.41 | 1.68 |
| 20mesh x 20mesh | 0.9 | 0.37 | 1.38 |
| 22mesh x 22mesh | 0.74 | 0.35 | 1.33 |
| 22mesh x 22mesh | 0.79 | 0.30 | 0.99 |
| 24mesh x 24mesh | 0.7 | 0.35 | 1.5 |
| 26mesh x 26mesh | 0.63 | 0.35 | 1.66 |
| 28mesh x 28mesh | 0.6 | 0.31 | 1.36 |
| 30mesh x 30mesh | 0.64 | 0.31 | 1.46 |
| 32mesh x 32mesh | 0.5 | 0.29 | 1.36 |
| 34mesh x 34mesh | 0.47 | 0.28 | 1.3 |
| 36mesh x 36mesh | 0.47 | 0.28 | 1.3 |
| 38mesh x 38mesh | 0.41 | 0.26 | 1.1 |
| 40mesh x 40mesh | 0.39 | 0.25 | 1.2 |
| 40mesh x 40mesh | 0.41 | 0.23 | 1.06 |
| 40mesh x 40mesh | 0.43 | 0.21 | 0.88 |
| 42mesh x 42mesh | 0.365 | 0.24 | 1.1 |
| 44mesh x 44mesh | 0.347 | 0.23 | 1.0 |
| 46mesh x 46mesh | 0.332 | 0.22 | 1.0 |
| 48mesh x 48mesh | 0.319 | 0.20 | 0.96 |
| 50mesh x 50mesh | 0.318 | 0.19 | 0.91 |
| 50mesh x 50mesh | 0.338 | 0.17 | 0.72 |
| 56mesh x 56mesh | 0.248 | 0.17 | 0.81 |
| 60mesh x 60mesh | 0.27 | 0.15 | 0.68 |
