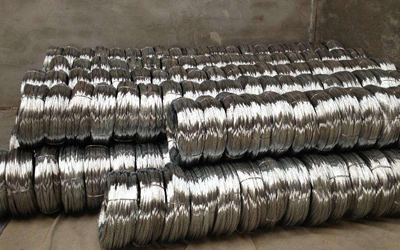

Roofing Nails Common Nails Concrete Nail Wall SpikeElectro Galvanized Iron Wire
General Introduction: Electro galvanized wire is our featured product. It is made by means of wire drawing followed by heat treatment and electro galvanizing.
Materials: Carbon steel wire, mild steel wire.
Wire diameter: BWG8# to BWG16#.
We also offer thinner wire down to BWG5# or up to BWG28# upon customers specific order.

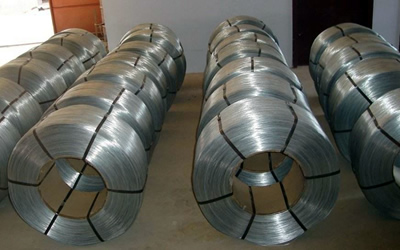

Packing: In coils or spools. Single coil package can be as small as 10 kg and up to maximum 1000 kg per coil.
Advantages: Thick zinc coating, good corrosion resistance, firm zinc coating, etc.
Forms of Supply: Can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire.
Applications: This kind of industrial wire is mainly used in construction, making of wire nails and wire ropes, express way fencing, binding of flowers and wire mesh weaving.
| Serial Number | Wire Gauge | Wire Diameter (mm) | Standard Bundle Weight (Kg) |
| 1 | Wire Gauge 8# | 4.0 | 50 |
| 2 | Wire Gauge 10# | 3.5 | 50 |
| 3 | Wire Gauge 12# | 2.8 | 50 |
| 4 | Wire Gauge 14# | 2.2 | 50 |
| 5 | Wire Gauge 16# | 1.6 | 50.25 |
| 6 | Wire Gauge 18# | 1.2 | 25 |
| 7 | Wire Gauge 20# | 0.9 | 25 |
| 8 | Wire Gauge 22# | 0.7 | 10-25 |
