Roofing Nails Common Nails Concrete Nail Wall SpikeBarbed Wire
Products information: Barbed wire twisted and weaved by high quality galvanized wire and PVC wire.
Feature: Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.
Material: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
Patterns available: Single Twisted Barbed Wire/ Double Twisted Barbed Wire/ Traditional Twisted Barbed Wire.

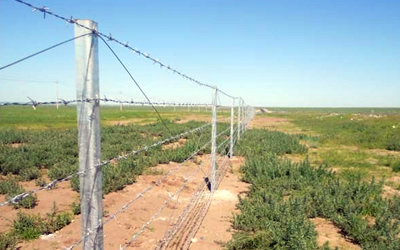

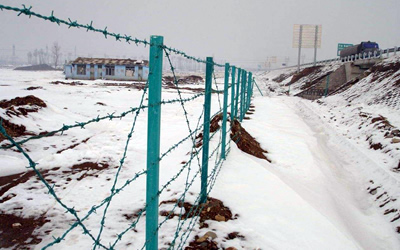

Application: Barbed wire mainly used in protecting of grass boundary, railway, highway, wine, prison, etc

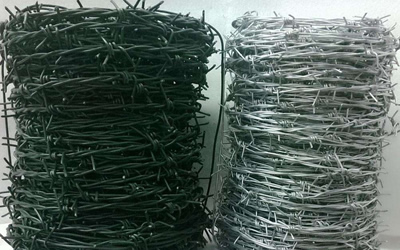

Packing: In coils. 12-25kg.
| Type | Wire Gauge (SWG) | Barb Distance(cm) | Barb Length (cm) | |
| Electric galvanized barbed wire, Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||
| PVC coated barbed wire, PE barbed wire | Before coating | After coating | 7.5-15 | 1.5-3 |
| 1.0mm-3.5mm | 1.4mm-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
| PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. | ||||
